Respiratory Health
Product Catalogue

Avanos is committed to help you reduce lower respiratory tract infections by providing effective clinical solutions to help with the removal and prevention of aspiration and colonisation in the oropharynx. The Avanos Respiratory Health solutions bundle includes the BALLARD* Closed Suction Systems, MICROCUFF* Endotracheal Tubes, BALLARD* Oral Care Systems and BALLARD* Mini-BAL Sampling Catheter.

Select a category to view available products.†

Closed Suction Systems – Adults

Endotracheal Tubes – Adults

Oral Care Solutions – Adults

Diagnostic Catheters  – Adults

Closed Suction Systems – Neonates/Paediatrics

Endotracheal Tubes – Paediatrics

Oral Care Solutions – Neonates/ Paediatrics

CLOSED SUCTION SYSTEMS - ADULTS

BALLARD* TURBO-CLEANING CLOSED SUCTION SYSTEMS

Indication: Aspiration catheter for removal of tracheal secretions of intubated / tracheotomized adult patients respecting the closed ventilation circuit

BALLARD* TURBO-CLEANING CLOSED SUCTION SYSTEM - DOUBLE SWIVEL ELBOWS

Features:

  • BALLARD* Technology
  • Built-in Cleaning Chamber
  • Gamma Sterilised: 5 Years Shelf Life
  • Available for Endotracheal and Tracheostomy Tubes
  • Available with Metered Dose Inhaler (MDI) Port
  • Available with dual lumen catheter
  • Validated for a maximum Usage Time of 72 Hours
  • Does not contain Natural Rubber Latex
  • Does not contain DEHP
  • Connector 15mm Female to 22mm Female

Product Codes:

BALLARD* Turbo-Cleaning Closed Suction System - WET PAK* Double Swivel Elbows

Features:

  • Contains in addition 12 Saline Vials
  • Gamma Sterilised: 3 Years Shelf Life – Saline Vials: aseptically filled
  • Does not contain Natural Rubber Latex nor DEHP
  • Validated for a maximum Usage Time of 72 Hours

Product Codes:

DESCRIPTION NHSSC CODE CODE OUTER DIAMETER LENGTH ISO COLOUR PACKAGING
WET PAK* DOUBLE SWIVEL ELBOW FSQ465 227166-5 12 Fr/4mm 54cm white 20/case
Endotracheal
WET PAK* DOUBLE SWIVEL ELBOW FSQ467 22716036-5 12 Fr/4mm 30.5cm white 20/case
Tracheostomy
WET PAK* DOUBLE SWIVEL ELBOW FSQ1000 22712186-5 12 Fr/4mm 54cm white 20/case
Endotracheal MDI Port
WET PAK* DOUBLE SWIVEL ELBOW FSQ998 227121863-5 12 Fr/4mm 30.5cm white 20/case
Tracheostomy MDI Port
WET PAK* DOUBLE SWIVEL ELBOW FSQ466 2276-5 14 Fr/4.6mm 54cm green 20/case
Endotracheal
WET PAK* DOUBLE SWIVEL ELBOW FSQ470 227036-5 14 Fr/4.6mm 30.5cm green 20/case
Tracheostomy
WET PAK* DOUBLE SWIVEL ELBOW FSQ1002 22714186-5 14 Fr/4.6mm 54cm green 20/case
Endotracheal MDI Port
WET PAK* DOUBLE SWIVEL ELBOW FSQ1001 227141863-5 14 Fr/4.6mm 30.5cm green 20/case
Tracheostomy MDI Port
WET PAK* DOUBLE SWIVEL ELBOW FSQ1088 2271616-5 16 Fr/5.3mm 54cm orange 20/case
Endotracheal
WET PAK* DOUBLE SWIVEL ELBOW FSQ1090 22716186-5 16 Fr/5.3mm 54cm orange 20/case
Endotracheal MDI Port
WET PAK* DOUBLE SWIVEL ELBOW FSQ1091 227161863-5 16 Fr/5.3mm 30.5cm orange 20/case
Tracheostomy MDI Port

BALLARD* Turbo-Cleaning Closed Suction System - T-Pieces

Features:

  • Gamma Sterilised: 5 Years Shelf Life
  • Does not contain Natural Rubber Latex nor DEHP
  • Validated for a maximum Usage Time of 72 Hours
  • 22mm x 22mm Flex Tube Connector
  • 15mm x 22mm Swivel Adapter (except 227105-5◊)

Product Codes:

DESCRIPTION NHSSC CODE CODE OUTER DIAMETER LENGTH ISO COLOUR PACKAGING
T-PIECE FSQ1092 227105-5◊ 10 Fr/3.3mm 54cm black 20/case
Endotracheal
T-PIECE FSQ1093 2271053-5 10 Fr/3.3mm 30.5cm black 20/case
Tracheostomy
T-PIECE FSQ1095 227135-5 12 Fr/4mm 30.5cm white 20/case
Tracheostomy
T-PIECE – 22715-5 12 Fr/4mm 54cm white 20/case
Endotracheal
T-PIECE – 2270135 14 Fr/4.6mm 30.5cm green 20/case
Tracheostomy

BALLARD* Turbo-Cleaning Closed Suction System - WET PAK* T-Pieces

Features:

  • Contains in addition 12 Saline Vials
  • Gamma Sterilised: 3 Years Shelf Life – Saline Vials: aseptically filled
  • Validated for a maximum Usage Time of 72 Hours
  • Does not contain Natural Rubber Latex nor DEHP

Product Codes:

DESCRIPTION NHSSC CODE CODE OUTER DIAMETER LENGTH ISO COLOUR PACKAGING
WET PAK* T-PIECE FSQ1100 2271516-5 12 Fr/4mm 54cm white 20/case
Endotracheal
WET PAK* T-PIECE FSQ1102 2270156-5 14 Fr/4.6mm 54cm green 20/case
Endotracheal
WET PAK* T-PIECE FSQ1103 22701356-5 14 Fr/4.6mm 30.5cm green 20/case
Tracheostomy
WET PAK* T-PIECE – 22012356-5 14 Fr/4.6mm 30.5cm green 20/case
Tracheostomy

BALLARD* MULTI-ACCESS PORT CLOSED SUCTION SYSTEMS

Indication: Aspiration catheter for intubated or tracheotomized adult patients who are on mechanical ventilation allowing doctors to perform alternate respiratory treatments without breaching the circuit

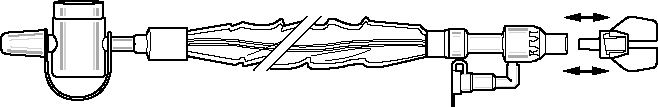

BALLARD* MULTI-ACCESS PORT CLOSED SUCTION SYSTEM - DOUBLE SWIVEL ELBOWS

Features:

  • BALLARD* Technology
  • Built-in Cleaning Chamber
  • Gamma Sterilised: 5 Years Shelf Life
  • Rotational Manifold with Multiple Ports (Suctioning Port & Alternate Therapy for Bronchoscopy or BALLARD* Mini-BAL sampling catheter)
  • Tethered Sleeve
  • Tethered Cap
  • Available for Endotracheal and Tracheostomy Tubes
  • Available with Metered Dose Inhaler (MDI) Port
  • Suction Catheter: Validated for a maximum Usage Time of 72 Hours
  • Does not contain Natural Rubber Latex nor DEHP

Product Codes:

Description NHSSC Code Code Outer Diameter Length ISO Colour Packaging
DOUBLE SWIVEL ELBOW – 24010-5 10 Fr/3.3mm 58.5cm black 20/case
Endotracheal
DOUBLE SWIVEL ELBOW – 240121-5 12 Fr/4mm 58.5cm white 20/case
Endotracheal
DOUBLE SWIVEL ELBOW – 240128-5 12 Fr/4mm 58.5cm white 20/case
Endotracheal MDI Port
DOUBLE SWIVEL ELBOW – 240123-5 12 Fr/4mm 35cm white 20/case
Tracheostomy
DOUBLE SWIVEL ELBOW – 24001238-5 12 Fr/4mm 35cm white 20/case
Tracheostomy MDI Port
DOUBLE SWIVEL ELBOW – 24014-5 14 Fr/4.6mm 58.5cm green 20/case
Endotracheal
DOUBLE SWIVEL ELBOW – 240148-5 14 Fr/4.6mm 58.5cm green 20/case
Endotracheal MDI Port
DOUBLE SWIVEL ELBOW – 240143-5 14 Fr/4mm 35cm green 20/case
Tracheostomy
DOUBLE SWIVEL ELBOW – 2401438-5 14 Fr/4.6mm 35cm green 20/case
Tracheostomy
MDI Port
DOUBLE SWIVEL ELBOW – 240168-5 16 Fr/5.3mm 58.5cm orange 20/case
Endotracheal
MDI Port
DOUBLE SWIVEL ELBOW – 2401638-5 16 Fr/5.3mm 35cm orange 20/case
Tracheostomy
MDI Port

BALLARD* MULTI-ACCESS PORT CLOSED SUCTION SYSTEM - WET PAK* DOUBLE SWIVEL ELBOWS

Features:

  • BALLARD* Technology
  • Built-in Cleaning Chamber
  • Rotational Manifold with Multiple Ports (Suctioning Port & Alternate Therapy for Bronchoscopy or BALLARD* Mini-BAL sampling catheter)
  • Tethered Sleeve
  • Tethered Cap
  • Available for Endotracheal and Tracheostomy Tubes
  • Available with Metered Dose Inhaler (MDI) Port
  • Contains in addition 12 Saline Vials
  • Gamma Sterilised: 3 Years Shelf Life – Saline Vials: aseptically filled
  • Suction Catheter: Validated for a maximum Usage Time of 72 Hours
  • Does not contain Natural Rubber Latex nor DEHP

Product Codes:

DESCRIPTION NHSSC CODE CODE OUTER DIAMETER LENGTH ISO COLOUR PACKAGING
WET PAK* DOUBLE SWIVEL ELBOW FSQ1105 240126-5 12 Fr/4mm 58.5cm white 20/case
Endotracheal
WET PAK* DOUBLE SWIVEL ELBOW FSQ1109 2401236-5 12 Fr/4mm 35cm white 20/case
Tracheostomy
WET PAK* DOUBLE SWIVEL ELBOW FSQ1113 2401286-5 12 Fr/4mm 58.5cm white 20/case
Endotracheal
MDI Port
WET PAK* DOUBLE SWIVEL ELBOW FSQ1106 240146-5 14 Fr/4.6mm 58.5cm white 20/case
Endotracheal
WET PAK* DOUBLE SWIVEL ELBOW FSQ1110 2401436-5 14 Fr/4.6mm 35cm green 20/case
Tracheostomy
WET PAK* DOUBLE SWIVEL ELBOW FSQ1114 2401486-5 14 Fr/4.6mm 58.5cm green 20/case
Endotracheal
MDI Port
WET PAK* DOUBLE SWIVEL ELBOW FSQ1118 24014386-5 14 Fr/4.6mm 35cm green 20/case
Tracheostomy
MDI Port
WET PAK* DOUBLE SWIVEL ELBOW FSQ1107 240166-5 16 Fr/5.3mm 58.5cm orange 20/case
Endotracheal
WET PAK* DOUBLE SWIVEL ELBOW FSQ1111 2401636-5 16 Fr/5.3mm 35cm orange 20/case
Tracheostomy
WET PAK* DOUBLE SWIVEL ELBOW FSQ1115 2401686-5 16 Fr/5.3mm 58.5cm orange 20/case
Endotracheal
MDI Port
WET PAK* DOUBLE SWIVEL ELBOW FSQ1119 24016386-5 16 Fr/5.3mm 35cm orange 20/case
Tracheostomy
MDI Port

BALLARD* MULTI-ACCESS PORT CLOSED SUCTION REPLACEMENT CATHETER

Features:

  • BALLARD* Technology
  • Built-in Cleaning Chamber
  • Gamma Sterilised: 3 Years Shelf Life
  • Tethered Sleeve
  • Tethered Cap
  • Available for Endotracheal and Tracheostomy Tubes
  • Suction Catheter: Validated for a maximum Usage Time of 72 Hours
  • Does not contain Natural Rubber Latex nor DEHP

Product Codes:

DESCRIPTION NHSSC CODE CODE OUTER DIAMETER LENGTH ISO COLOUR PACKAGING
ENDOTRACHEAL FSQ1121 240125-5 12 Fr/4mm 58.5cm white 20/case
Replacement Catheter
TRACHEOSTOMY FSQ1125 2401253-5 12 Fr/4mm 35cm white 20/case
Replacement Catheter
ENDOTRACHEAL FSQ1122 240145-5 14 Fr/4.6mm 58.5cm green 20/case
Replacement Catheter
TRACHEOSTOMY FSQ1126 2401453-5 14 Fr/4.6mm 35cm green 20/case
Replacement Catheter
ENDOTRACHEAL FSQ1123 240165-5 16 Fr/5.3mm 58.5cm orange 20/case
Replacement Catheter

BALLARD* CLOSED SUCTION SYSTEMS

Indication: Aspiration catheter for removal of tracheal secretions of intubated / tracheotomized adult patients respecting the closed ventilation circuit.

BALLARD* CLOSED SUCTION SYSTEM - T-PIECES

Features:

  • BALLARD* Technology
  • Tactile Sleeve for Better Feel
  • Gamma Sterilised: 5 Years Shelf Life
  • Locking Thumb Port
  • Validated for a maximum Usage Time of 24 Hours
  • 22mm x 22mm Flex Tube Connector
  • Available for Endotracheal and Tracheostomy tubes
  • Available with Directional Tip
  • Available with Dual Lumen Catheter
  • Does not contain Natural Rubber Latex nor DEHP

Product Codes:

DESCRIPTION NHSSC CODE CODE OUTER DIAMETER LENGTH ISO COLOUR PACKAGING
CLEAR T-PIECE FSQ1051 2205-5 14 Fr/4.6mm 54cm green 20/case
Endotracheal
CLEAR T-PIECE – 22059-5 14 Fr/4.6mm 56cm green 20/case
Endotracheal Directional Tip
CLEAR T-PIECE FSQ1052 220135-5 14 Fr/4.6mm 30.5cm green 20/case
Tracheostomy 15mm x 22mm Swivel Adapter

BALLARD* CLOSED SUCTION SYSTEM - DOUBLE SWIVEL ELBOWS

Features:

  • BALLARD* Technology
  • Tactile Sleeve for Better Feel
  • Numbered Catheter Allowing the Clinician to Limit the Distance of Catheter Advance
  • Gamma Sterilised: 5 Years Shelf Life
  • Available for Endotracheal and Tracheostomy tubes
  • Available with Dual Lumen Catheter
  • Available with Directional Tip
  • Connector 15mm Female to 22mm Female
  • Validated for a maximum Usage Time of 24 Hours
  • Does not contain Natural Rubber Latex nor DEHP

Product Codes:

DESCRIPTION NHSSC CODE CODE OUTER DIAMETER LENGTH ISO COLOUR PACKAGING
DOUBLE SWIVEL ELBOW – 2160-5 12 Fr/4mm 54cm white 20/case
Endotracheal
DOUBLE SWIVEL ELBOW – 21609-5 12 Fr/4mm 56cm white 20/case
Endotracheal Directional Tip
DOUBLE SWIVEL ELBOW – 21603-5 12 Fr/4mm 30.5cm white 20/case
Tracheostomy
DOUBLE SWIVEL ELBOW – 2210-5 14 Fr/4.6mm 54cm white 20/case
Endotracheal
DOUBLE SWIVEL ELBOW FSQ313 22103-5 14 Fr/4.6mm 30.5cm green 20/case
Tracheostomy
DOUBLE SWIVEL ELBOW FSQ268 22107-5 14 Fr/4.6mm 54cm green 20/case
Endotracheal
Dual Lumen
DOUBLE SWIVEL ELBOW FSQ1058 22108-5 14 Fr/4.6mm 54cm green 20/case
Endotracheal
MDI Port
DOUBLE SWIVEL ELBOW – 22109-5 14 Fr/4.6mm 56cm green 20/case
Endotracheal
Directional Tip
DOUBLE SWIVEL ELBOW FSQ1060 2260-5 16 Fr/5.3mm 54cm orange 20/case
Endotracheal

BALLARD* CLOSED SUCTION SYSTEM - WET PAK* DOUBLE SWIVEL ELBOWS

Features:

  • BALLARD* Technology
  • Gamma Sterilised: 3 Years Shelf Life – Saline Vials: aseptically filled
  • Tactile Sleeve for Better Feel
  • Contains in addition 12 Saline Vials
  • Validated for a maximum Usage Time of 24 Hours
  • Does not contain Natural Rubber Latex nor DEHP

Product Codes:

DESCRIPTION NHSSC CODE CODE OUTER DIAMETER LENGTH ISO COLOUR PACKAGING
WET PAK* DOUBLE SWIVEL ELBOW FSQ419 21606-5 12 Fr/4mm 54cm white 20/case
Endotracheal
WET PAK* DOUBLE SWIVEL ELBOW FSQ418 216036-5 12 Fr/4mm 30.5cm white 20/case
Tracheostomy
WET PAK* DOUBLE SWIVEL ELBOW FSQ421 22106-5 14 Fr/4.6mm 54cm green 20/case
Endotracheal
WET PAK* DOUBLE SWIVEL ELBOW FSQ420 221036-5 14 Fr/4.6mm 30.5cm green 20/case
Tracheostomy
WET PAK* DOUBLE SWIVEL ELBOW FSQ321 221069-5 14 Fr/4.6mm 56cm green 20/case
Endotracheal
Directional Tip
WET PAK* DOUBLE SWIVEL ELBOW FSQ1062 2210386-5 14 Fr/4.6mm 30.5cm green 20/case
Tracheostomy
MDI Port
WET PAK* DOUBLE SWIVEL ELBOW FSQ1063 22606-5 16 Fr/5.3mm 54cm orange 20/case
Endotracheal

BALLARD* CLOSED SUCTION SYSTEMS - ACCESSORIES

BALLARD* MULTI-ACCESS PORT CLOSED SUCTION SYSTEM - ACCESSORIES

Features:

  •  Gamma Sterilised









Product Codes:

DESCRIPTION NHSSC CODE CODE PACKAGING
BALLARD* SEAL CASSETTE FSQ1128 24013-5 20/case

BALLARD* CLOSED SUCTION SYSTEM - ACCESSORIES

Features:

  • Gamma Sterilised





Product Codes:

DESCRIPTION NHSSC CODE CODE PACKAGING
FLEX TUBE, 22MM X 22MM – 113 50/case
Y-ADAPTER FOR SUCTION CANISTER – 114 50/case
UNIT DOSE SALINE, 0.9% SODIUM CHLORIDE SOLUTION,
PINK VIAL, 15ML, NONPYROGENIC, ASEPTICALLY FILLED		 FSQ496 118 144/case
CONNECTOR 15MM FEMALE TO 22MM FEMALE FSQ613 1115 50/case
SWIVEL ADAPTER, 15MM X 22MM, T-PIECE – 111 50/case
FIXED ADAPTER, 15MM X 22MM, T-PIECE FSQ274 112 50/case
METERED DOSE INHALER ADAPTER – 119 20/case
BLUE ADAPTER FOR BALLARD*
CLOSED SUCTION SYSTEM		 – 50040 20/case

BALLARD* CLOSED VENTILATOR CIRCUIT DRAIN

Features:

  • Allows the Clearing of Ventilator Condensation Without Exposing the Caregiver or the Patient
  • Vacuum Activated
  • Maintains a Closed System
  • Developed With the Safety of the Caregiver and Patient in Mind

Product Codes:

DESCRIPTION NHSSC CODE CODE PACKAGING
BALLARD*
CLOSED VENTILATOR CIRCUIT DRAIN ONLY		 – 131 50/case
BALLARD* CLOSED VENTILATOR CIRCUIT DRAIN KIT: – 132 25/case
Circuit Drain 2,74 m Connector Tubing Y-Adapter
BALLARD* CLOSED VENTILATOR CIRCUIT DRAIN PROBE – 133 50/case
2,74 m Connector Tubing Y-Adapter
BALLARD*
CLOSED VENTILATOR CIRCUIT DRAIN WITH
90 DEGREE CONNECTION		 – 134 25/case
2,74 m Connector Tubing Collapsible Connector Y-Adapter
Back to Top

ENDOTRACHEAL TUBES - ADULTS

Indication: Airway management by nasal or oral intubation of the trachea in adult patients

MICROCUFF* ENDOTRACHEAL TUBES

Features:

  • Available in sizes 5.0 to 10.0mm (inner diameter)
  • Cylindrical Cuf

Product Codes:

TUBE SIZE (INNER DIAMETER) NHSSC CODE CODE PACKAGING
5.0mm FDF1723 35210 1 case – 10 eaches/dispenser
5.5mm FDF1724 35211 1 case – 10 eaches/dispenser
6.0mm FDF1725 35212 1 case – 10 eaches/dispenser
6.5mm FDF1726 35213 1 case – 10 eaches/dispenser
7.0mm FDF1727 35214 1 case – 10 eaches/dispenser
7.5mm FDF1728 35215 1 case – 10 eaches/dispenser
8.0mm FDF1729 35216 1 case – 10 eaches/dispenser
8.5mm FDF1730 35217 1 case – 10 eaches/dispenser
9.0mm FDF1731 35218 1 case – 10 eaches/dispenser
10.0mm – 35220 1 case – 10 eaches/dispenser
Back to Top

ORAL CARE SOLUTIONS - ADULTS

BALLARD* ORAL CARE KITS

Indication: Suction tools for removal of oral secretions of patients, that support the compliance to a comprehensive oral care protocol.

BALLARD* ORAL CARE ADVANCED KIT

Features:

  • 2 Years Shelf Life

Kit includes:

  • 1 Prep pack (incl. 1 covered Yankauer, 1 Y-adapter & 1 suction handle)
  • 4 Suction Swab Packs (incl. 1 suction swab, 1 applicator swab & 1 empty solution cup)
  • 2 Toothbrush Packs (incl. 1 suction toothbrush, 1 oral swab & 1 empty solution  cup) available in sizes 5.0 to 10.0mm (inner diameter)

Product Codes:

DESCRIPTION NHSSC CODE CODE PACKAGING
BALLARD* ORAL CARE ADVANCED KIT FSQ1070 25928 24/case

BALLARD* ORAL CARE MODERATE KIT

Features:

  • 2 Years Shelf Life

Kit includes:

  • 1 Prep Pack (incl. 1 covered Yankauer, 1 Y-adapter & 1 suction handle)
  • 2 Suction Swab Packs (incl. 1 suction swab, 1 applicator swab & 1 empty solution cup)
  • 1 Toothbrush Pack (incl. 1 suction toothbrush, 1 oral swab & 1 empty solution cup)

Product Codes:

DESCRIPTION NHSSC CODE CODE PACKAGING
BALLARD* ORAL CARE MODERATE KIT FSQ1072 25930 32/case

BALLARD* MINI ORAL CARE KIT

Features:

  • 2 Years Shelf Life
  • For use with a 4-hour oral care protocol

Kit includes:

  • 1 Prep Pack (reusable for 24 Hours – incl. self-cleaning covered Yankauer)
  • 2 Toothbrush Packs (incl. 1 suction toothbrush, 1 mini applicator swab, 1 empty solution cup & 1 mini suction catheter)
  • 4 Suction Swab Packs (incl. 1 mini suction swab, 1 mini applicator swab & 1 empty solution cup)

Product Codes:

DESCRIPTION NHSSC CODE CODE PACKAGING
BALLARD* MINI ORAL CARE KIT FDB953 970008-5 24/case

BALLARD* ORAL CARE SUCTION KITS - COMPONENTS & SUCTION KITS

Indication: Suction tools for removal of oral secretions of patients, that support the compliance to a comprehensive oral care protocol.

BALLARD* ORAL CARE SUCTION COMPONENTS

Features:

  • 5 Years Shelf Life (except 99785◊, 99786†, 99789‡: 2 Years Shelf Life)





Product Codes:

DESCRIPTION NHSSC CODE CODE PACKAGING
BALLARD* READY CARE* ORAL CARE SUCTION PROBES FSQ719 123 50/case
BALLARD* ORAL CARE SUCTION CATHETER FOR ADULTS FSQ373 12601 25/case
BALLARD* ORAL CARE SUCTION TOOTHBRUSH FSQ374 12602 25/case
BALLARD* ORAL CARE SUCTION SWAB, ANGLED-TIP – 12603 25/case
BALLARD* SUCTION VALVE AND Y-ADAPTER FSQ377 12606 25/case
BALLARD* ORAL CARE SUCTION SWAB, WITH DENTIFRICE (MAY BE USED WITHOUT BALLARD* SUCTION VALVE) FSQ1888 12607 25/case
BALLARD* SELF-CLEANING COVERED YANKAUER FSQ2400 99785◊ 25/case
BALLARD* SUCTION HANDLE FSQ1284 99786† 25/case
BALLARD* ORAL CARE PREP PACK: FSQ1285 99789‡ 40/case
1 self-cleaning, covered Yankauer,1 suction handle, Y-adapter

BALLARD* ORAL CARE SWABS

Features:

  • Shelf Life for Swabs with Dentifrice: 2 years
  • Shelf Life for Swabs without Dentifrice: 5 years

Product Codes:

DESCRIPTION NHSSC CODE CODE ITEMS/POUCH POUCHES/CASE
SINGLE WRAPPED
BALLARD* ORAL CARE SWAB FSQ1881 12240 250 4
BALLARD* ORAL CARE SWAB, WITH DENTIFRICE FSQ1884 12245 250 4
BALLARD* ORAL CARE SWAB, WITH DENTIFRICE – 12246 250 2
BALLARD* ORAL CARE SWAB, PLASTIC HANDLE FSQ1886 12254 250 4
BALLARD* ORAL CARE SWAB, WITH DENTIFRICE, PLASTIC HANDLE FSQ1887 12255 250 4
BULK PACKAGED
BALLARD* ORAL CARE SWAB FSQ1882 12241 500 2
BALLARD* ORAL CARE SWAB FSQ1883 12243 20 50
BALLARD* ORAL CARE SWAB, WITH DENTIFRICE FSQ1885 12249 20 50
BALLARD* ORAL CARE SWAB, PLASTIC HANDLE – 12251 20 50
BALLARD* ORAL CARE SWAB, WITH DENTIFRICE, PLASTIC HANDLE – 12257 20 50

BALLARD* MINI ORAL CARE SWABS

Features:

  • Shelf Life for Swabs: 5 years
  • Individually Wrapped with 12cm Plastic Handle

Product Codes:

DESCRIPTION NHSSC CODE CODE ITEMS/POUCH POUCHES/CASE
BALLARD* MINI ORAL CARE SWABS FDB952 122548 250 4
Back to Top

DIAGNOSTIC CATHETERS - ADULTS

Indication: This product is intended for early, accurate diagnosis of VAP.

BALLARD* MINI-BAL SAMPLING CATHETER

Features:

  • Simple, effective non-bronchoscopic bronchoalveolar lavage at the bedside
  • EO Sterilised: 3 Years Shelf Life
  • Directional Tip for R/L Insertion
  • Includes an access port elbow, adapter for seal cassette, seal cassette, stepped connector, oxygen line
  • Atraumatic “Mushroom” Tip
  • Does not contain Natural Rubber Latex

Product Codes:

DESCRIPTION NHSSC CODE CODE PACKAGING
BALLARD* MINI-BAL SAMPLING CATHETER – 16 FR OUTER/12 FR INNER TELESCOPING CATHETER FSQ1914 142 5/case
BALLARD* MINI-BAL SAMPLING CATHETER – 13 FR OUTER/8 FR INNER TELESCOPING CATHETER FSQ1913 143 5/case
Back to Top

CLOSED SUCTION SYSTEMS - NEONATES/PAEDIATRICS

Indication: Aspiration catheter for removal of tracheal secretions of intubated neonatal/paediatric patients respecting the closed ventilation circuit.

BALLARD* CLOSED SUCTION SYSTEM FOR NEONATES/PAEDIATRICS - ELBOWS

Features:

  • BALLARD* Technology
  • Gamma Sterilised: 5 Years Shelf Life
  • Locking Thumb Port
  • Contains Elbow Adapters
  • Does not contain Natural Rubber Latex nor DEHP

Product Codes:

DESCRIPTION NHSSC CODE CODE OUTER DIAMETER LENGTH ISO COLOUR PACKAGING
ELBOW ENDOTRACHEAL TUBE ADAPTERS FSQ499 206-5 6 Fr/2mm 30.5cm light green 20/case
(2.5mm, 3mm, 3.5mm)
ELBOW ENDOTRACHEAL TUBE ADAPTERS FSQ 2342 207-5 7 Fr/2.3mm 35.5cm ivory 20/case
(2.5mm, 3mm, 3.5mm, 4mm)
ELBOW ENDOTRACHEAL TUBE ADAPTERS FSQ311 208-5 8 Fr/2.6mm 35.5cm light blue 20/case
(3mm, 3.5mm, 4mm)
ELBOW ENDOTRACHEAL TUBE ADAPTERS FSQ498 210-5 10 Fr/3.3mm 40.5cm black 20/case
(4.5mm, 5mm, 5.5mm)

BALLARD* CLOSED SUCTION SYSTEM FOR NEONATES/PAEDIATRICS - “Y”

Features:

  • BALLARD* Technology
  • Gamma Sterilised: 5 Years Shelf Life
  • Locking Thumb Port
  • Contains Elbow and Y-adapters
  • Does not contain Natural Rubber Latex nor DEHP

Product Codes:

DESCRIPTION NHSSC CODE CODE OUTER DIAMETER LENGTH ISO COLOUR PACKAGING
“Y” ENDOTRACHEAL TUBE ADAPTERS FSQ300 195-5 5 Fr/1.6mm 30.5cm grey 20/case
(2mm, 2.5mm)
“Y” ENDOTRACHEAL TUBE ADAPTERS FSQ301 196-5 6 Fr/2mm 30.5cm light green 20/case
(2.5mm, 3mm, 3.5mm)
“Y” ENDOTRACHEAL TUBE ADAPTERS FSQ1066 197-5 7 Fr/2.3mm 30.5cm ivory 20/case
(3mm, 3.5mm,4mm)
“Y” ENDOTRACHEAL TUBE ADAPTERS FSQ308 198-5 8 Fr/2.6mm 30.5cm light blue 20/case
(3mm, 3.5mm, 4mm)
“Y” ENDOTRACHEAL TUBE ADAPTERS FSQ290 1910-5 10 Fr/3.3mm 40.5cm black 20/case
(4.5mm, 5mm, 5.5mm)
“Y” ENDOTRACHEAL TUBE ADAPTERS FSQ291 1912-5 12 Fr/4mm 40.5cm white 20/case
(5.5mm, 6mm, 6.5mm)

BALLARD* MULTI-ACCESS CATHETER FOR NEONATES/PAEDIATRICS

Indication: A multi-access catheter designed to deliver surfactants to the distal airway.

Features:

  • BALLARD* Technology
  • Gamma Sterilised: 5 Years Shelf Life
  • Contains Closure Cap and Y-adapter
  • Does not contain Natural Rubber Latex
  • The Catheter is DEHP free

Product Codes:

DESCRIPTION NHSSC CODE CODE OUTER DIAMETER LENGTH ISO COLOUR PACKAGING
MAC CATHETER ADAPTER FSQ403 1900 5 Fr/1.6mm 30.5cm white 5/case
(2.5mm, 3mm, 3.5mm)
MAC CATHETER ADAPTER FSQ1067 1920 5 Fr/1.6mm 30.5cm white 5/case
(2mm)
MAC CATHETER ADAPTER FSQ1068 1940 5 Fr/1.6mm 30.5cm white 5/case
(4mm)
TRANSPORT KIT FSQ1069 19000 50/case
(“Y” Plug and Cap)

BALLARD* CLOSED SUCTION SYSTEM FOR NEONATES/PAEDIATRICS - ACCESSORIES

Product Codes:

DESCRIPTION NHSSC CODE CODE PACKAGING
ENDOTRACHEAL TUBE ADAPTER 2MM WITH LAVAGE PORT – 2-020 20/case
ENDOTRACHEAL TUBE ADAPTER 2.5MM WITH LAVAGE PORT – 2-025 20/case
ENDOTRACHEAL TUBE ADAPTER 3MM WITH LAVAGE PORT – 2-030 20/case
ENDOTRACHEAL TUBE ADAPTER 3.5MM WITH LAVAGE PORT – 2-035 20/case
ENDOTRACHEAL TUBE ADAPTER 4MM WITH LAVAGE PORT – 2-040 20/case
ENDOTRACHEAL TUBE ADAPTER 4.5MM WITH LAVAGE PORT – 2-045 20/case
MANUAL PERCUSSOR FOR NEONATAL PULMONARY USE – 11000 12/case
Back to Top

ENDOTRACHEAL TUBES - PAEDIATRICS

Indication: Airway management by nasal or oral intubation of the trachea in paediatric patients.

MICROCUFF* ENDOTRACHEAL TUBE FOR PAEDIATRIC, ORAL/NASAL MAGILL


Product Codes:

TUBE SIZE (INNER DIAMETER) NHSSC CODE CODE AGE/WEIGHT YEARS/KG PACKAGING
3.0mm FDG1209 35111 Term ≄ 3kg to < 8 months 10/dispenser
3.5mm FDG1210 35112 8 months < 2 years 10/dispenser
4.0mm FDG1211 35113 2 to < 4 years 10/dispenser
4.5mm FDG1212 35114 4 to < 6 years 10/dispenser
5.0mm FDG1213 35115 6 to < 8 years 10/dispenser
5.5mm FDG1214 35116 8 to < 10 years 10/dispenser
6.0mm FDG1215 35117 10 to < 12 years 10/dispenser
6.5mm FDG1216 35118 12 to < 14 years 10/dispenser
7.0mm FDG1217 35119 14 to < 16 years 10/dispenser

MICROCUFF* ENDOTRACHEAL TUBE FOR PAEDIATRIC, ORAL CURVED

Product Codes:

TUBE SIZE (INNER DIAMETER) NHSSC CODE CODE AGE/WEIGHT YEARS/KG PACKAGING
3.0mm FDF2287 35161 Term ≄ 3kg to < 8 months 10/dispenser
3.5mm FDF2288 35162 8 months < 2 years 10/dispenser
4.0mm FDF2289 35163 2 to < 4 years 10/dispenser
4.5mm FDF2290 35164 4 to < 6 years 10/dispenser
5.0mm FDF2291 35165 6 to < 8 years 10/dispenser
5.5mm FDF2292 35166 8 to < 10 years 10/dispenser
6.0mm FDF2293 35167 10 to < 12 years 10/dispenser
6.5mm FDF2294 35168 12 to < 14 years 10/dispenser
7.0mm FDF2295 35169 14 to < 16 years 10/dispenser
Back to Top

ORAL CARE SOLUTIONS - NEONATES/PAEDIATRICS

BALLARD* ORAL CARE SUCTION CATHETERS FOR NEONATES/PAEDIATRICS

Features:

  • Does not contain Natural Rubber Latex
  • Packaging: 5 pouches of 50 units

Product Codes:

DESCRIPTION NHSSC CODE CODE PACKAGING
5 BALLARD* ORAL CARE SUCTION CATHETERS FOR NEONATES/PAEDIATRICS – 1221 50/case
(6 Fr – 2mm)
5 BALLARD* ORAL CARE SUCTION CATHETERS FOR NEONATES/PAEDIATRICS – 1222 50/case
(8 Fr – 2.6mm)
5 BALLARD* ORAL CARE SUCTION CATHETERS FOR NEONATES/PAEDIATRICS FSQ546 1223 50/case
(10 Fr – 3.3mm)
Back to Top

† The dimensions and properties listed can vary within pre-established specifications. This page was created using the most recent information. In the interest of continuous improvement, the characteristics of the product may change without prior notice. Check with your local representative for local product availability.
